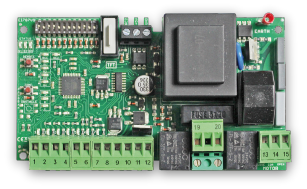

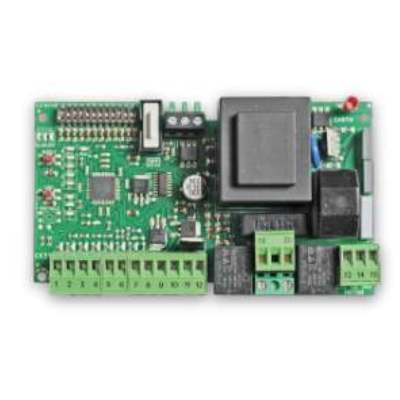

The K82 control unit enables the retrofitting of existing sliding gate automations also using the 8K2 Safety Edges for both opening and closing inputs (up to 3+3). The high functions that improve the operation of old control units are soft start, slowdown electronic and brake. 2 optional outputs enrich the possibilities.
MAIN FUNCTIONS
– Fault signals via LEDs
– Adjustment of motor force in normal running
– Adjustment of pause time (automatic closing)
– Photocell test
– Motor testing
– Self-learning of radio codes with start function
– Self-learning of radio codes with stop function
– Self-learning of radio codes with function of pedestrian
– Radio code self-learning with function of quick closing
– Intelligent multifunctional inputs
– Connection of No.3 8K2 safety edges in opening
– Connection of no.3 8K2 safety edges in closing
– Pedestrian opening
– Soft-start
– End-of-stroke slowdown
– Electronic motor brake
– No.2 optional auxiliary outputs
Technical Characteristics
– Power supply: 230Vac
– Max managed motor power: 1000W
– Accessory power supply: 24Vdc 200mA
– Flasher output: 24Vac, 5 Watts
– 230Vac independent fixed output (flasher)
– Frequency: 433.92Mhz
– Storable radio codes: 100
– Dimensions: 137x78x33mm
– Operating temperature: -10°C, +70°
